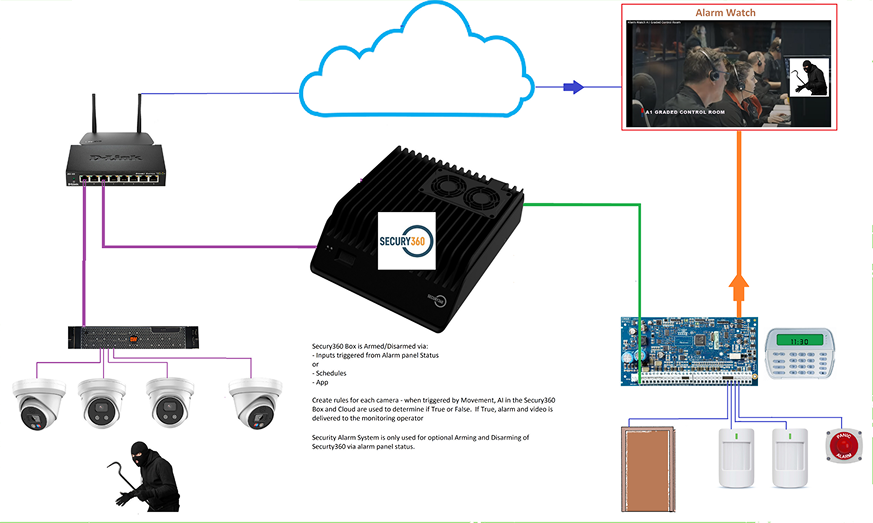

Integrating Secury360 with an existing security camera ensures real-time and on-the-spot analysis of observed images. This not only minimizes disturbances for users by activating alerts only when a person is detected on their property but also contributes to cost savings. Beyond its role as a person detection system, Secury360 includes alarm panel features, simplifying daily operations for users and installers alike.
Pros
- Great for monitoring cameras only
- Links to alarm panel for arm & disarm
- Integrates with NX Witness
- Cameras can be in partitions
- Minimal bandwidth on network
- Automatic free upgrades on box firmware
- Remote configurable
- Can be used with cameras with poor or no analytics because the box has analytics built in
Cons
- Box limited to 8 cameras
- License per box & per camera
- Installation required
- Only three partition rules can be made per box
Important Points
- Licensing per channel + 2 license for each box charged by Clear Digital
Where to Buy
Set Up Tips For Secury360

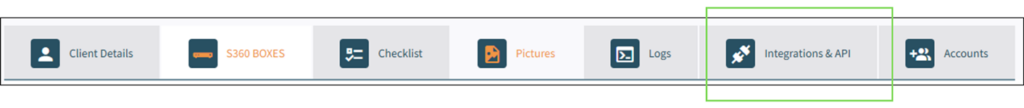

Select Integrations & API Menu under Client

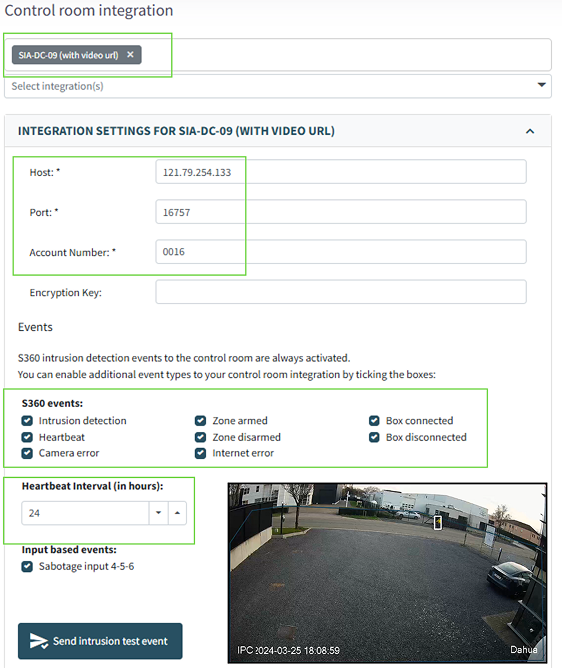

Select SIA-DC09 (with video url) integration option
In host box, Enter Alarm Watch IP of 121.79.254.133
In port box, enter Alarm Watch port of 16757
In account number box, enter your 4 digit account number on Alarm Watch port 43
Select S360 events to send to monitoring station as well as heartbeat interval at 24 hours and click save
Click on send intrusion test event to test connection to Alarm Watch. Alarm Watch will receive a video link that can be viewed in the Alarm Watch monitoring app
Important:

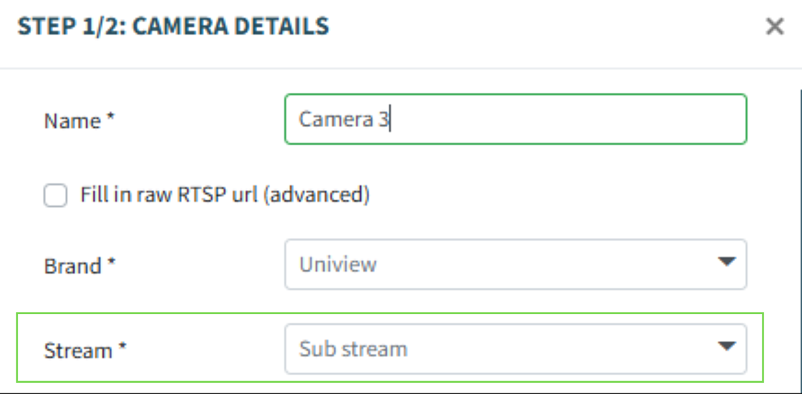

Under camera settings, make sure that the camera stream is set to the sub stream and that your camera is set for H.264 format in the camera

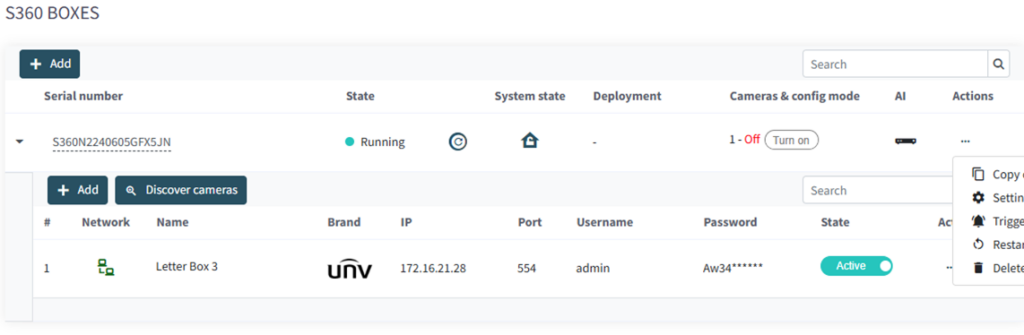

Select Settings under S360 Boxes on your 360 Box

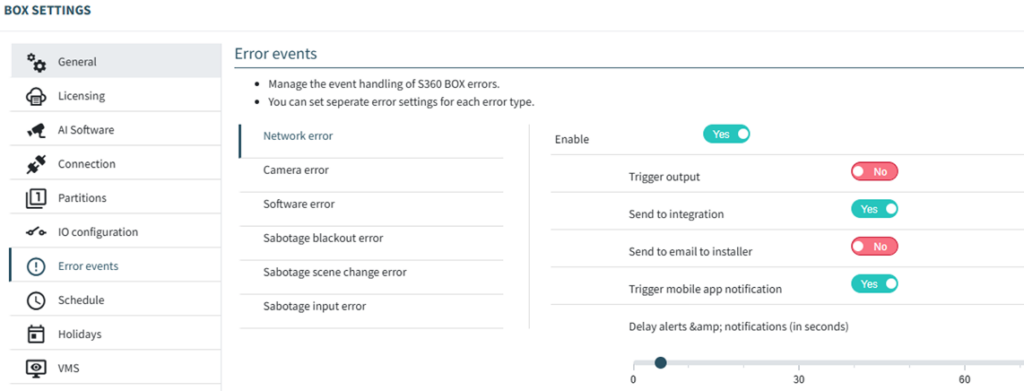

Select error event from left hand menu. From here choose which error events you want to send to Alarm Watch (integration). We recommend a delay of 60 seconds to avoid nuisance alarms.
